What are the types of oil seals?

Number of hits：5902023-05-15 11:31:18　

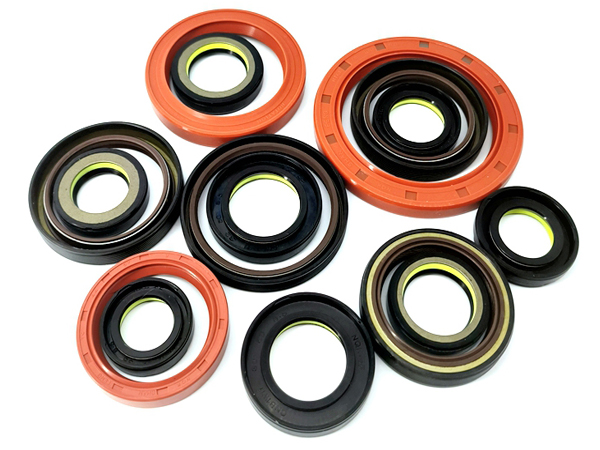

　　Oil seals, also known as rotary shaft seals, are used to prevent the leakage of oil and other fluids in machinery and equipment. They are essential components in many industries, including automotive, aerospace, marine, and manufacturing. There are several types of oil seals available, each designed for specific applications. In this article, we will discuss the different types of oil seals.

　　1. Lip Seal

　　Lip seals are the most common type of oil seal. They consist of a metal housing, a flexible lip, and a spring that applies pressure to the lip against the shaft. The flexible lip is usually made of rubber or other elastomeric materials and is designed to create a tight seal against the shaft. Lip seals are used in a wide range of applications, including automotive engines, pumps, and gearboxes.

　　2. V-Ring Seal

　　V-ring seals are used in applications where the shaft rotates at high speeds and where there is a risk of contamination. They consist of a single piece of rubber or other elastomeric material that is shaped like a V. The V-ring is fitted onto the shaft and creates a tight seal against the housing. V-ring seals are commonly used in automotive engines, agricultural machinery, and hydraulic systems.

　　3. Cassette Seal

　　Cassette seals are designed for applications where high pressure and high temperatures are present. They consist of a metal housing, a sealing element, and a spring that applies pressure to the sealing element. The sealing element is usually made of PTFE or other high-performance materials and is designed to create a tight seal against the shaft. Cassette seals are commonly used in hydraulic cylinders, pumps, and motors.

　　4. Mechanical Seal

　　Mechanical seals are used in applications where high pressure and high temperatures are present, and where there is a risk of contamination. They consist of two mating surfaces that are pressed together by a spring. The mating surfaces are usually made of ceramic, carbon, or other high-performance materials and are designed to create a tight seal against the shaft. Mechanical seals are commonly used in pumps, compressors, and other rotating equipment.

　　5. Oil Bath Seal

　　Oil bath seals are used in applications where the shaft rotates at low speeds and where there is a risk of contamination. They consist of a metal housing, a sealing element, and a spring that applies pressure to the sealing element. The sealing element is usually made of rubber or other elastomeric materials and is designed to create a tight seal against the shaft. Oil bath seals are commonly used in agricultural machinery, construction equipment, and other heavy-duty applications.

　　In conclusion, there are several types of oil seals available, each designed for specific applications. Lip seals are the most common type of oil seal, while V-ring seals are used in high-speed applications. Cassette seals and mechanical seals are designed for high-pressure and high-temperature applications, while oil bath seals are used in low-speed applications. When selecting an oil seal, it is essential to consider the application's requirements, such as speed, temperature, pressure, and the type of fluid being sealed.
