The Sealing Principle and Applications of Skeleton Oil Seals

Number of hits：1632024-07-31 15:24:03　

　　In the realm of mechanical engineering and automotive design, ensuring the integrity of moving components is paramount. One component that plays a crucial role in this regard is the skeleton oil seal, also known as the skeleton-type oil seal. This article delves into the principles behind these seals and explores their diverse applications.

　　Understanding Skeleton Oil Seals

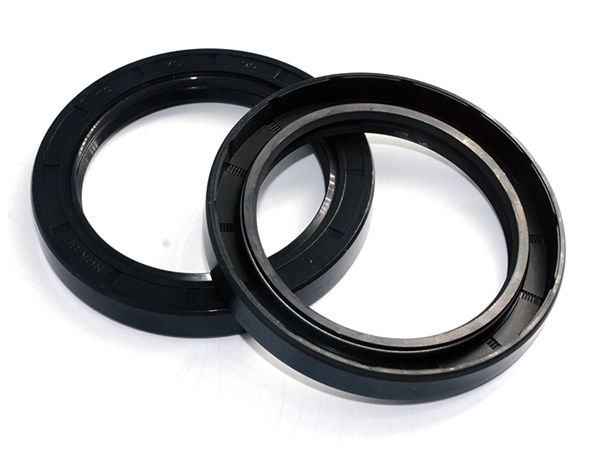

　　Skeleton oil seals, characterized by their unique construction, are designed to prevent the leakage of lubricants and other fluids while protecting moving parts from contaminants. The core principle behind these seals is their ability to provide a robust barrier between different sections of machinery. The skeleton oil seal typically consists of a metal casing and a flexible elastomeric seal element. The metal casing, often made from steel or stainless steel, provides structural support and durability. The elastomeric component, usually composed of materials such as nitrile rubber or fluorocarbon, offers flexibility and resilience.

　　Sealing Principle

　　The sealing mechanism of skeleton oil seals involves a combination of compression and dynamic sealing. When the oil seal is installed, the elastomeric material is compressed between the rotating shaft and the stationary housing. This compression creates a tight seal that prevents the escape of lubricants and the ingress of contaminants. Additionally, the design of the seal often includes a lip or multiple lips that enhance the sealing effect. These lips are in constant contact with the shaft, ensuring a secure barrier that adapts to the shaft's movements.

　　The dynamic nature of skeleton oil seals allows them to accommodate slight misalignments and variations in shaft diameter, which is crucial for maintaining a consistent seal under operational stresses. The materials used in the construction of these seals are chosen for their resistance to heat, chemicals, and wear, which further enhances their performance and longevity.

　　Applications

　　Skeleton oil seals find extensive use in various industries due to their versatility and effectiveness. In automotive engineering, they are employed in engines, transmissions, and differential systems. Their ability to withstand high temperatures and pressures makes them ideal for critical applications where lubricant containment is essential. For instance, in engine assemblies, skeleton oil seals prevent oil leakage, which could otherwise lead to decreased efficiency and potential damage.

　　In the industrial sector, skeleton oil seals are used in machinery and equipment such as pumps, compressors, and gearboxes. Here, they protect against the ingress of dust and dirt while ensuring that lubricants remain contained within the system. Their application extends to aerospace and agricultural machinery as well, where reliability and durability are crucial.

　　Skeleton oil seals are indispensable components in many mechanical systems, offering reliable sealing solutions that enhance the performance and longevity of machinery. By understanding their principles of operation and following proper maintenance practices, industries can ensure efficient and trouble-free operation.
