How Is The Size Of The Transmission Oil Seal Determined?

Number of hits：3402024-01-05 15:53:55　

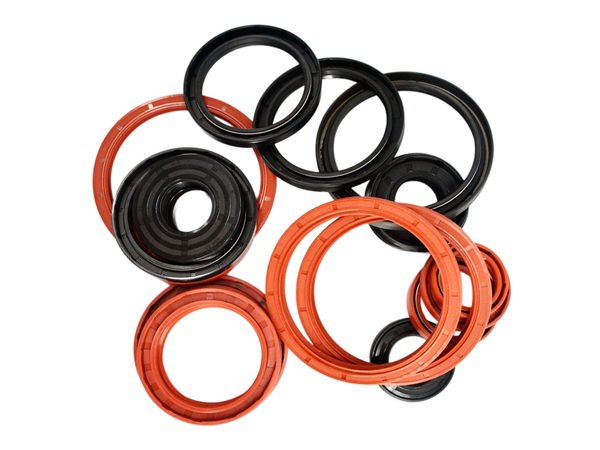

　　Transmission oil seals play a pivotal role in the automotive industry, preventing the leakage of transmission fluid and ensuring the smooth operation of vehicles. However, determining the correct size of a transmission oil seal is a critical aspect that requires precision and understanding. This article aims to elucidate the process involved in determining the size of transmission oil seals.

　　The size of a transmission oil seal is primarily determined by three factors: the shaft diameter, the housing bore diameter, and the width of the seal. Each of these dimensions plays a crucial role in ensuring the effectiveness of the seal.

　　The shaft diameter is the diameter of the shaft where the seal will be installed. It’s essential to measure this accurately as the inner diameter of the seal needs to match the shaft diameter to provide an effective seal. A seal that is too loose will not prevent leakage, while a seal that is too tight may cause excessive wear and tear on the shaft.

　　The housing bore diameter is the diameter of the housing where the seal will be installed. The outer diameter of the seal needs to match the housing bore diameter to ensure a snug fit. Similar to the shaft diameter, a loose fit will not provide an effective seal, while a tight fit may cause damage to the housing or the seal itself.

　　The width of the seal is also a critical dimension. It needs to be sufficient to accommodate the necessary sealing lip and any additional features such as a garter spring or dust lip. However, it also needs to fit within the available space in the housing.

　　Determining the size of a transmission oil seal is a process that requires precision and a clear understanding of the application. By accurately measuring the shaft diameter, housing bore diameter, and seal width, one can select the most suitable oil seal for their transmission, ensuring optimal performance and longevity.
