What Is The Pressure Rating For Oil Seals?

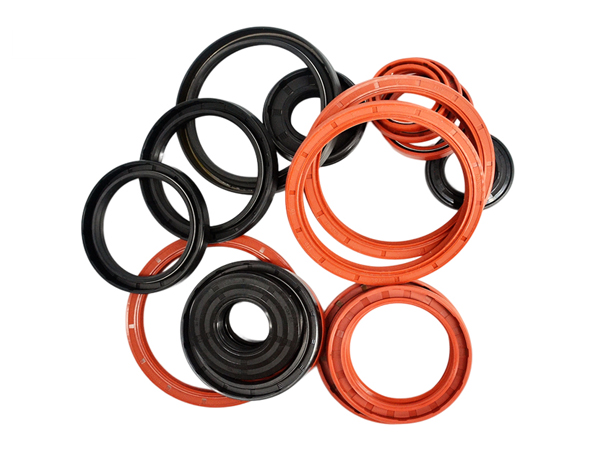

　　Oil seals are critical components in various mechanical systems. They prevent the leakage of lubricants and the intrusion of contaminants. A key aspect to consider when choosing an oil seal is its pressure rating.

　　Understanding Pressure Ratings:

　　The pressure rating of an oil seal refers to the maximum pressure that the seal can withstand without failure. This rating is typically measured in pounds per square inch (psi) or bar.

　　Specific Pressure Ratings for Oil Seals:

　　Most standard oil seals are designed for non-pressurized or low-pressure applications up to 0.5 bar (approximately 7.25 psi) for diameters of a limited size1. For diameters of 500 mm or more, the maximum pressure is 0.1 bar (approximately 1.45 psi).

　　For applications with very low pressure up to 3 psi (0.2 bar) continuous, or 7 psi (0.5 bar) maximum pressure spikes depending on shaft speed, seals made from materials like Fluoroelastomer (FKM), and Nitrile (NBR) can be used.

　　Factors Influencing Pressure Ratings:

　　1. Material: The material of the seal plays a significant role in its pressure rating. Some materials can withstand higher pressures than others.

　　2. Design: The design of the seal, including its shape and the presence of garter springs, can affect its pressure rating.

　　3. Operating Conditions: The pressure rating can also depend on the operating conditions, such as temperature and rotational speed.

　　Choosing the Right Pressure Rating

　　Selecting an oil seal with the appropriate pressure rating is crucial for the longevity and efficiency of your mechanical system. Here are some tips:

　　1. Understand Your System: Determine the maximum pressure your system will exert on the seal.

　　2. Consult Manufacturer Specifications: Refer to the manufacturer’s specifications for the pressure rating of their oil seals.

　　3. Consider Safety Margins: Choose a seal with a pressure rating higher than your system’s maximum pressure to account for unexpected pressure spikes.

　　Understanding the specific pressure ratings of oil seals is crucial in selecting the right seal for your needs. By considering the factors that influence the pressure rating and following the tips provided, you can ensure the optimal performance and longevity of your mechanical system.
