What are the types of hydraulic seals?

Number of hits：4302023-09-13 10:15:24　

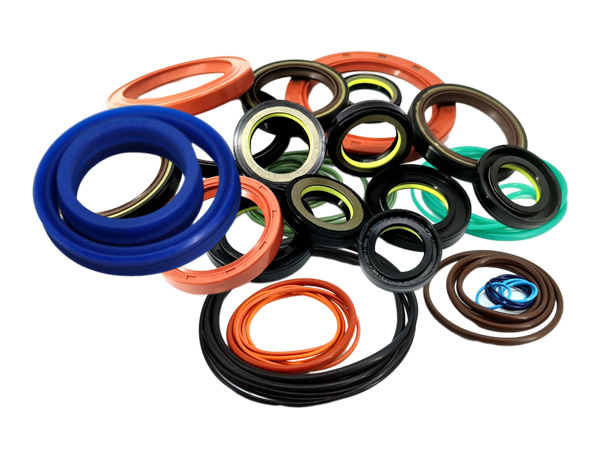

　　Hydraulic seals are a fundamental component in hydraulic systems, playing a crucial role in preventing fluid leakage and maintaining system efficiency. There are several types of hydraulic seals, each designed to meet specific requirements and operating conditions. This article will delve into the various types of hydraulic seals and their applications.

　　O-Rings: O-rings are perhaps the most common type of hydraulic seals. They are circular in shape and made from elastomers such as nitrile, silicone, or fluorocarbon. O-rings are versatile and can be used in both static and dynamic applications. Their simple design and cost-effectiveness make them a popular choice across various industries.

　　Piston Seals: These seals are used in hydraulic cylinders to prevent fluid leakage between the piston and cylinder bore. They are typically installed in the groove of the piston head and provide a dynamic seal that can withstand high pressures and temperature variations.

　　Rod Seals: Also known as shaft seals, rod seals are used to prevent fluid leakage from the rod side of hydraulic cylinders. They provide a static seal between the rod and cylinder bore and must be able to withstand high pressures, friction, and temperature fluctuations.

　　Wiper Seals: Wiper seals, also known as scraper seals, are used to prevent contaminants from entering the hydraulic system. They scrape off dirt, dust, and moisture from the rod surface as it retracts into the cylinder, thereby prolonging the service life of other hydraulic seals.

　　Wear Rings: Wear rings, also known as guide rings or bearing rings, guide the piston and rod within the hydraulic cylinder. They provide a bearing surface between moving parts, reducing friction and preventing metal-to-metal contact.

　　Backup Rings: Backup rings enhance the performance of other hydraulic seals by providing additional support and resistance against extrusion. They are typically installed on one or both sides of an O-ring or other primary seal.

　　Hydraulic seals play an indispensable role in ensuring the efficient operation of hydraulic systems. Understanding the characteristics and functions of these different types of seals can help engineers select the most suitable seal for their specific application.
