The Difference between TC and TG Oil Seals

Number of hits：5022023-09-06 10:50:43　

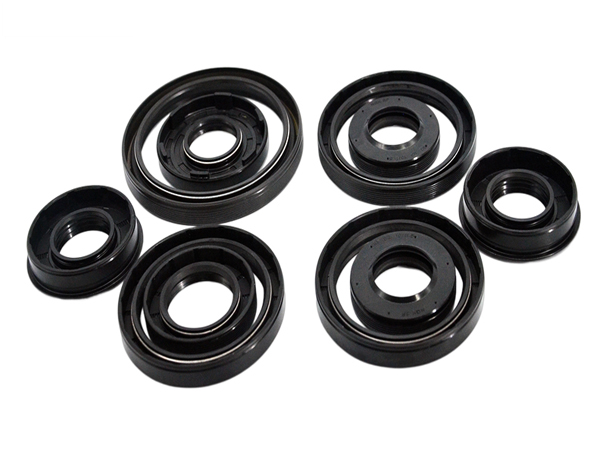

　　Oil seals are essential components in various mechanical systems, including engines and industrial machinery, as they prevent the leakage of lubricants and contaminants. Among the different types of oil seals available, TC and TG seals are commonly used. In this article, we will discuss the differences between TC and TG oil seals, helping you understand their unique characteristics and applications.

　　1. Design and Construction:

　　The primary difference between TC and TG oil seals lies in their design and construction. TC oil seal, also known as double-lip seals, consist of two sealing lips - an inner lip and an outer lip. The inner lip is responsible for retaining the lubricant, while the outer lip acts as a dust and dirt exclusion barrier. On the other hand, TG seals, also referred to as single-lip seals, feature a single sealing lip that performs both the sealing and exclusion functions.

　　2. Sealing Efficiency:

　　When it comes to sealing efficiency, TC seals are generally considered to be more effective. The presence of two sealing lips in TC seals provides an additional layer of protection against oil leakage. The inner lip ensures a tight seal around the rotating shaft, while the outer lip prevents the entry of contaminants. In contrast, TG seals rely on a single sealing lip to perform both functions, which may result in slightly lower sealing efficiency compared to TC seals.

　　3. Installation and Maintenance:

　　In terms of installation and maintenance, TG seals offer certain advantages. Due to their simpler design with a single sealing lip, TG seals are easier to install and require less space compared to TC seals. Additionally, TG seals are generally more forgiving in terms of shaft misalignment, making them suitable for applications where alignment may be a concern. Maintenance-wise, both TC and TG seals require periodic inspection and replacement to ensure optimal performance.

　　4. Applications:

　　TC and TG seals find applications in different industries and machinery. TC seals are commonly used in automotive engines, hydraulic systems, and industrial equipment where high sealing efficiency is required. Their dual lip design provides better protection against oil leakage, making them suitable for applications with high-speed rotating shafts. TG seals, on the other hand, are often used in lower-speed applications, such as pumps, gearboxes, and agricultural machinery. Their simpler design and ease of installation make them a cost-effective choice for various industrial applications.

　　5. Cost:

　　When it comes to cost, TG seals are generally more economical compared to TC seals. The simpler design of TG seals requires fewer materials and manufacturing processes, resulting in a lower price point. This makes TG seals a preferred choice for applications where cost is a significant consideration without compromising the necessary sealing requirements.

　　TC and TG oil seals differ in terms of design, sealing efficiency, installation, applications, and cost. While TC seals offer higher sealing efficiency with their dual lip design, TG seals provide ease of installation and cost-effectiveness. Understanding the differences between these two types of oil seals will help you make an informed decision when selecting the appropriate seal for your specific application.
