What material is rotary shaft seals?

Number of hits：4332023-08-25 10:20:46　

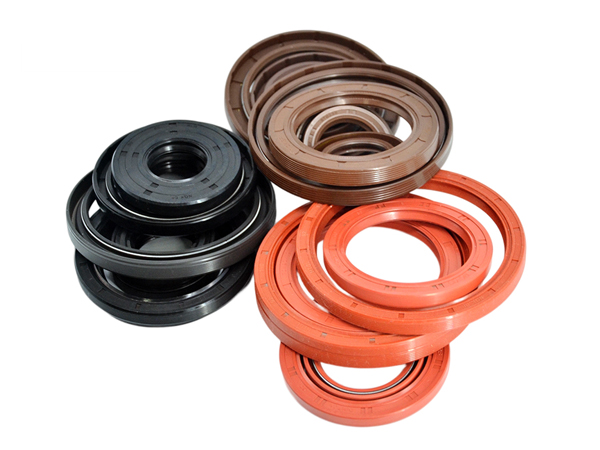

　　Rotary shaft seals, also known as lip seals or oil seals, are crucial components in various mechanical systems. They serve the vital role of preventing the leakage of fluids and the ingress of contaminants in rotating shaft applications. One might wonder, "What material is rotary shaft seals?" The answer involves understanding the materials that make up these seals and how their composition contributes to their performance and durability.

　　Material Composition of Rotary Shaft Seals

　　Rotary shaft seals are primarily composed of two key materials: a flexible elastomer and a supporting metal framework. This combination optimizes the seal's ability to maintain a secure barrier while accommodating the dynamic movement of the rotating shaft.

　　1. Elastomeric Material:

　　The primary sealing element of a rotary shaft seal is the flexible lip that comes into direct contact with the shaft. This lip is typically made from an elastomeric material, most commonly nitrile rubber (NBR) or fluoroelastomer (FKM). The choice of elastomer depends on the specific application, operating conditions, and the fluids the seal will encounter.

　　Nitrile Rubber (NBR): NBR is widely used for rotary shaft seals due to its excellent oil resistance and cost-effectiveness. It provides reliable sealing for applications involving lubricating oils, fuels, and non-aggressive fluids.

　　Fluoroelastomer (FKM): FKM seals offer superior resistance to a broader range of chemicals, including aggressive fluids, fuels, and high-temperature environments. FKM seals are chosen for applications where extreme conditions or exposure to corrosive substances are expected.

　　2. Metal Framework:

　　Supporting the elastomeric lip is a metal framework that provides structural integrity and stability to the seal. The metal framework is typically made from stainless steel or other corrosion-resistant metals. This framework reinforces the seal, prevents distortion, and maintains the proper pressure against the rotating shaft, ensuring effective sealing.

　　Tailoring Materials to Applications

　　The choice between NBR and FKM, as well as the specific composition of the metal framework, depends on several factors:

　　Fluid Compatibility: The compatibility of the sealing materials with the fluid being sealed is crucial. NBR is suitable for common oils, whereas FKM is chosen for aggressive chemicals and high-temperature environments.

　　Temperature Range: FKM excels in high-temperature applications, while NBR is suitable for lower temperature ranges.

　　Pressure Conditions: Both NBR and FKM seals can handle a range of pressure conditions, but the design and material selection are optimized for specific pressures.

　　The material composition of rotary shaft seals involves a delicate balance between elastomeric properties and structural support. NBR and FKM, along with carefully chosen metal frameworks, create a harmonious combination that effectively seals rotating shafts while maintaining durability and resistance to diverse operational conditions. The selection of these materials is guided by the specific requirements of each application, ensuring that rotary shaft seals perform their essential sealing role reliably and efficiently.
