How to measure an o ring size?

Number of hits：4302023-08-10 13:17:46　

　　O ring are a popular type of sealing component used in various industries, including automotive, aerospace, and plumbing. Accurate measurements of O ring sizes are crucial for ensuring a proper fit and preventing leaks. In this article, we will provide you with a step-by-step guide on how to measure an O ring size accurately.

　　Step 1: Gather the Necessary Tools:

　　To measure an O ring size, you will need a few essential tools:

　　1. Caliper: A digital or vernier caliper will be required to obtain precise measurements.

　　2. O ring sizing chart: This chart provides standard sizes for O ring and will help you identify the correct size based on your measurements.

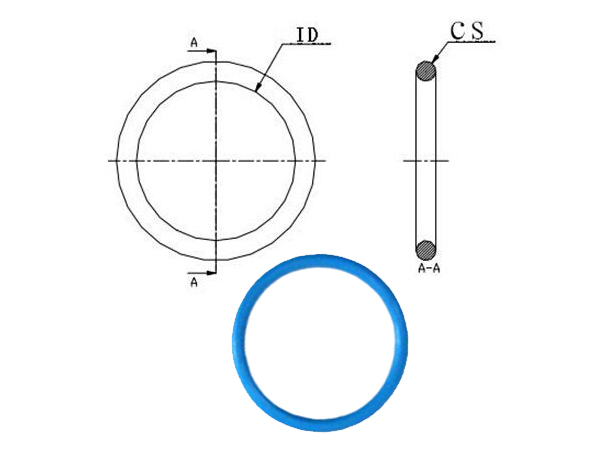

　　Step 2: Measure the Inner Diameter (ID):

　　The inner diameter of an O ring refers to the distance across the groove when the ring is in a relaxed state. Follow these steps to measure the ID accurately:

　　1. Carefully remove the O ring from its groove and avoid stretching or distorting it.

　　2. Using the caliper, measure the inside diameter of the O ring. Ensure that the caliper jaws are parallel to achieve an accurate reading.

　　3. Take multiple measurements at various points around the O ring's circumference to ensure consistency.

　　Step 3: Measure the Cross-Sectional Diameter (CS):

　　The cross-sectional diameter of an O ring represents the thickness or height of the ring. Follow these steps to measure the CS accurately:

　　1. Place the O ring on a flat surface, ensuring that it lays flat without any twists or bends.

　　2. Gently press the O ring to achieve a uniform shape and height.

　　3. Position the caliper vertically and measure the height of the O ring.

　　4. Similar to the ID measurement, take multiple measurements at different points to ensure accuracy.

　　Step 4: Choose the Correct O ring Size:

　　Now that you have obtained accurate measurements for the ID and CS, you can use an O ring sizing chart to determine the appropriate size. Locate the measurements on the chart and match them with the corresponding O ring size.

　　It's important to note that the size of an O ring is often represented by its ID and CS dimensions. For example, if the ID measures 10mm and the CS measures 2mm, the corresponding O ring size might be indicated as 10x2mm.

　　Step 5: Consider Other Factors:

　　While measuring the ID and CS is the primary method for determining an O ring size, it's essential to consider other factors that may affect the sealing application. These factors include:

　　1. Material Compatibility: Ensure that the selected O ring material is compatible with the intended application, as different materials have varying chemical resistance and temperature limits.

　　2. Compression Percentage: Determining the proper amount of compression for the O ring is crucial for achieving an effective seal. Consult engineering specifications or material guides for guidance.

　　Accurate measurement of O ring sizes is vital for achieving proper sealing and preventing leaks in various industrial applications. By following the step-by-step guide provided in this article, you can confidently measure the ID and CS of an O ring with precision. Remember to choose the correct O ring size based on your measurements and consider additional factors that may impact the sealing application. With the right measurements and careful consideration, you will be able to select and install the perfect O ring for your needs.
