Do o-rings need to be exact size?

Number of hits：4722023-07-21 15:29:07　

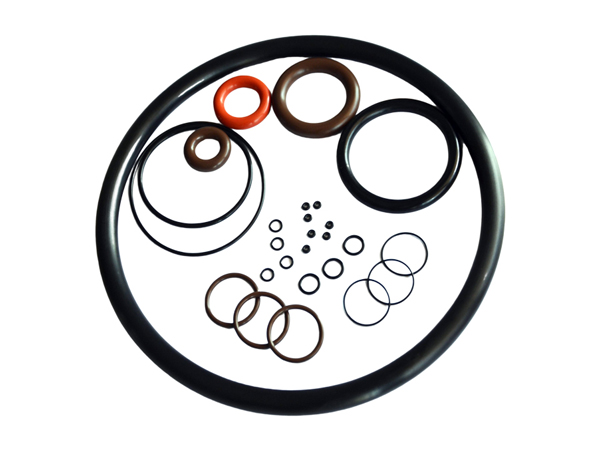

　　O-rings are circular rubber seals that are used to prevent leakage of fluids or gases in various applications, such as plumbing, hydraulic systems, pneumatic systems, and automotive parts. O-rings are available in different sizes, materials, and hardness levels to suit different needs and environments. But do o-rings need to be exact size? How can we determine the proper o-ring size for a given application?

　　The answer is yes, o-rings need to be exact size, or at least within a certain tolerance range, to ensure optimal sealing performance and prevent premature failure. The size of an o-ring is determined by two dimensions: the cross-section (CS) and the inside diameter (ID). The cross-section is the thickness of the o-ring, and the inside diameter is the distance from one inner edge of the o-ring to the opposite inner edge.

　　The cross-section and the inside diameter affect how well the o-ring fits into the groove or cavity where it is installed, and how much it compresses when pressure is applied. If the o-ring is too large or too small, it may not seal properly, or it may extrude out of the groove and get damaged. Therefore, it is important to measure the o-ring size accurately and match it with the groove dimensions.

　　There are different methods and tools for measuring o-ring size, such as calipers, gauges, cones, tapes, and charts. Calipers are the most precise and reliable tool for measuring both the cross-section and the inside diameter of an o-ring. Gauges, cones, and tapes can be used to measure the inside diameter of an o-ring by comparing it with a known standard. Charts can be used to look up the standard o-ring sizes based on different standards, such as U.S., Japanese JIS, British BS, or Common Metric.

　　The most commonly found o-ring size standard is AS568, which specifies 369 standard sizes of o-rings with five standard cross-sections: 0.070, 0.103, 0.139, 0.210, and 0.275 inches. These sizes cover most of the applications in the U.S. market. However, if the o-ring size does not fit any of these standards, custom and non-standard products are available for most materials with no tooling or setup fees.

　　O-rings need to be exact size to ensure proper sealing performance and prevent leakage or damage. The size of an o-ring is determined by its cross-section and inside diameter, which can be measured by various methods and tools. Standard o-ring sizes are available based on different standards, but custom and non-standard products can also be ordered if needed.
