How do you size hydraulic cylinder oil seal?

Number of hits：4852023-07-14 10:21:53　

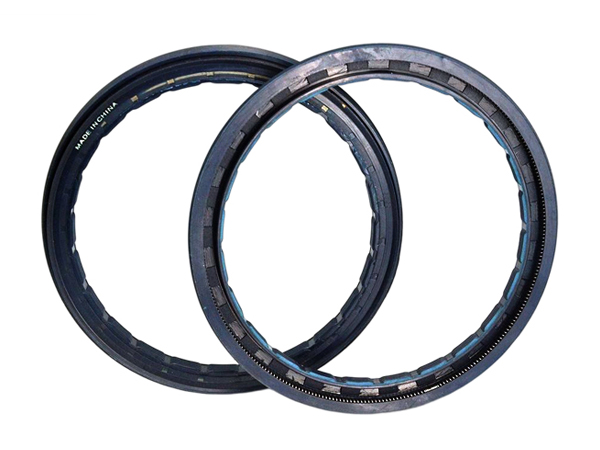

　　When it comes to sizing hydraulic cylinder oil seals, there are a few key factors to consider. These factors include the cylinder bore diameter, the rod diameter, the seal groove dimensions, and the operating conditions.

　　Firstly, the cylinder bore diameter is an important factor in determining the size of the oil seal. The oil seal should have a slightly larger diameter than the bore to ensure a proper fit. This allows for effective sealing and prevents leakage of hydraulic fluid. It is important to accurately measure the bore diameter using precision tools to ensure the correct size seal is selected.

　　Secondly, the rod diameter is another crucial aspect to consider. The oil seal should fit snugly around the rod to prevent any leakage. It is essential to accurately measure the rod diameter and choose a seal that matches it. If the seal is too loose, it may result in leakage, while if it is too tight, it may cause excessive friction and wear.

　　Thirdly, the seal groove dimensions play a significant role in sizing the oil seal. The seal groove is the space in the cylinder where the oil seal is installed. It is important to measure the dimensions of the groove accurately to ensure the seal fits properly. The groove width, depth, and shape should be considered when selecting the appropriate size seal. A seal that is too small for the groove may not provide adequate sealing, while a seal that is too large may not fit properly.

　　Lastly, the operating conditions must be taken into account when sizing the oil seal. Factors such as the pressure, temperature, and type of fluid being used can affect the performance of the seal. It is important to select a seal that is designed to withstand the specific operating conditions. Different seals are available with varying materials and designs that are suitable for different applications. Considering the operating conditions ensures the seal will function effectively and provide long-lasting performance.

　　Sizing hydraulic cylinder oil seals requires careful consideration of various factors. Accurately measuring the cylinder bore diameter, rod diameter, and seal groove dimensions is crucial to ensure a proper fit. Additionally, considering the operating conditions helps in selecting a seal that can withstand the specific requirements. By taking these factors into account, one can effectively size hydraulic cylinder oil seals and ensure optimal performance and sealing capabilities.
