What assembly matters should be paid attention to when replacing a new oil seal?

Number of hits：4522023-06-26 16:34:48　

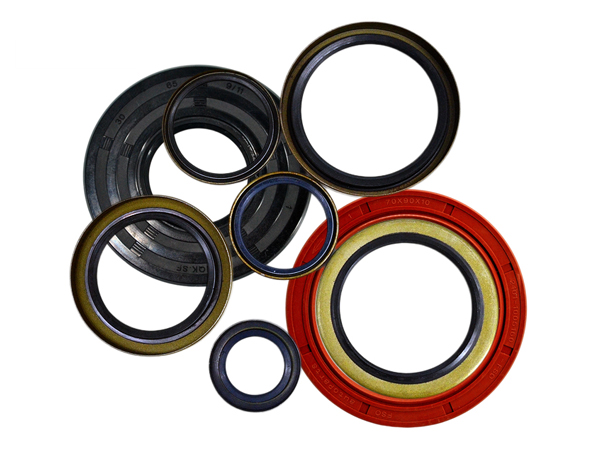

　　An oil seal is a sealing device that prevents liquids or gases from leaking out of mechanical equipment. It is usually installed between a rotating shaft and a stationary part. When replacing a new oil seal, some assembly matters should be paid attention to, to ensure that the oil seal is properly installed and performs its function.

　　Here are some tips for installing a new oil seal:

　　1. Check the new oil seal before installation. Make sure there are no flaws or deformities on the oil seal, such as cracks, tears, or wear. A small scratch on the outer diameter can cause leakage in the seal.

　　2. Evaluate the shaft and bore to confirm no abrasions or residue are present. The surfaces that the oil seal comes in contact with should be smooth and clean, without any sharp edges or burrs. Any minor damage to the shaft or bore can cause leakage or premature failure of the oil seal.

　　3. Lubricate the oil seal, shaft, and bore before installation. This will help the oil seal slide into place and protect the sealing lip during its first run. Use a compatible lubricant that does not damage the rubber material of the oil seal.

　　4. Use the right installation tools and methods. It is recommended to use special tools, such as a bearing fitting tool set or a spring expansion tool, to facilitate proper alignment and installation of the oil seal. Avoid using hammers or screwdrivers that can damage or deform the oil seal. Apply even pressure on the oil seal until it is fully seated in the bore.

　　5. Make sure the oil seal is facing the right direction. The spring side of the oil seal should always face the side of the medium to be sealed, not outward. The oil seal should also be perpendicular to the shaft axis, not cocked or tilted.

　　6. Check the oil seal after installation. Make sure there are no gaps or leaks between the oil seal and the shaft or bore. Also, make sure the oil seal is not twisted or rolled in dynamic applications.

　　By following these tips, you can install a new oil seal correctly and ensure its optimal performance and durability.
