Are thicker O-rings better?

Number of hits：5122023-06-22 10:19:19　

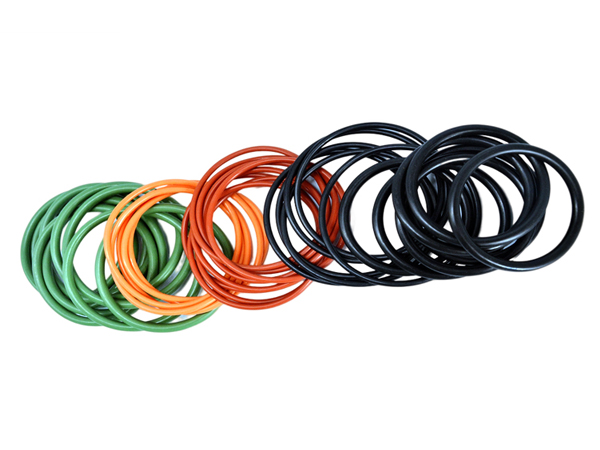

　　O-rings are circular rubber pieces that are used for sealing various applications, such as pipes, valves, pumps, cylinders, and more. They prevent the leakage of fluids or gases between two surfaces. O-rings come in different brands, materials, sizes, and thicknesses. The thickness of an O-ring refers to its cross-sectional diameter, which determines its elasticity and sealing performance.

　　But are thicker O-rings better than thinner ones? The answer is not so simple. It depends on several factors, such as the pressure, temperature, fluid compatibility, groove design, and installation of the O-ring. In general, thicker O-rings have more resistance to compression and extrusion, which means they can withstand higher pressures and larger gaps between the mating surfaces. However, thicker O-rings also have more friction and require more force to install and remove. They may also be more prone to twisting or rolling in dynamic applications.

　　Therefore, the optimal thickness of an O-ring depends on the specific application and operating conditions. There is no one-size-fits-all solution for choosing the best O-ring thickness. Instead, it is important to follow the recommended standards and guidelines for O-ring design and selection. For example, the USA:AS568 standard defines the most commonly used O-ring sizes in inches and millimeters, including the cross-sectional diameter. The ISO:3601 standard specifies the dimensions and tolerances of metric O-rings. These standards can help engineers and users to select the appropriate O-ring size and thickness for their needs.

　　In conclusion, thicker O-rings are not necessarily better than thinner ones. The best O-ring thickness depends on the application and operating conditions. It is advisable to consult the relevant standards and guidelines for O-ring design and selection before choosing an O-ring.
